Corridor Light, Three Lamp on Single Gang Plate
Light Notification System for Nurses

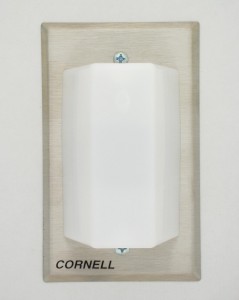

The L-103 corridor light notification system is an individual lamp mounted on a single-gang plate.
This corridor light notification system is ideal for nursing homes, senior care facilities, schools and more. Residents activate the device or bedside station to illuminate the system to notify staff of an emergency.
Related Products:
| L-101A | L-102 |
Description:
Available with one, two, three, four or six lamps and full range of optional silk-screened designations. Cornell Corridor Lights feature translucent wedge-shaped covers in red or white.
Operation:
The light will illuminate when associated station is activated.
Maintenance:
Dome covers are easily removed from the front, for simplified lamp replacement.
Options:
Corridor lights can be made in 1-6 light configurations with white or red domes. Lights can be made red, blue, amber, yellow, or green with additional filters. Domes can also be silk-screened.
Mounting:
Mount on standard, single-gang boxes or plaster rings, with a required depth of 1 inch.
Engineering Specifications:
The contractor shall furnish and install the Cornell Series 4000 Corridor Lights with three lamps. The domes shall be (red) or (white), with optional designations silk-screened on the surface. The stainless steel faceplate shall mount on a standard, sing-gang electrical wall box or single-gang plaster ring, with external connection achieved via pigtails. The dome covers shall be removable from the front for easy replacement of the lamps.
Technical Specifications:
- Power requirements: 24VDC
- Operating Environment: 50-120F indoor non-condensing
- Physical Faceplate Dimensions: 4 1/2"H x 2 3/4"W (1 gang)
- Mounting: Single-gang back box with 1" minimum depth
- Wiring: #22 AWG Minimum
