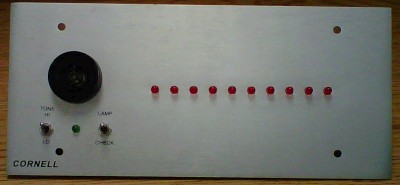

Annunciator, 10 Zone, In One Row for Dual Status System, - 4 1/2"H x 10" W
Download Brochure & Wiring Diagram
Get Help with System Design/Installation
Annunciator, 10 Zone, One Row for Dual Status System
This 10 zone, dual status annunciator is a crucial wireless emergency call system for use in healthcare facilities, hospices, assisted living centers, schools, and nursing homes. Handicapped bathrooms, hotels, and airports often use annunciators to assist people with disabilities.
Communicating with patients, residents, and individuals is made easier with Cornell’s efficient annunciator systems. This system integrates a variety of color coded, electrical signals to alert individuals who are visually or hearing impaired, or those with other physical impairments, and staff in emergency situations.
Related Products:
Description:
Series 4000 Annunciator panels proved clear indication of all incoming calls. Anodized aluminum finish. Surface or flush mountable. 10, 15 or 25 LED indicators per row are provided for visual alert; an electric tone, for audible alert. Two tone board operations are available: the (TG) for single status and teh (AT) for dual or triple status systems.
Options:
Tone options: Two options are available, one for single status and another for multiple status systems.
Custom sizes: Call factory for custom sizes to be manufactured to your specifications.
Mounting:
Available in flush wall-mounted or optional oak finished surface or sloping desktop enclosures.
WE - wall enclosures for surface mounting.
SE - sloping enclosure for desktop mounting.
Engineering Specifications:
The faceplate shall be made of anodized aluminum and provide designation strips. Indicators shall be light emitting diodes (LEDs); incandescent lamps are not acceptable. The faceplate shall feature hi-lo tone switch and lamp test switch. LED power indicator shall be (single) (dual) or (triple).
Technical Information:
- Power Requirements: 24VDC
- Operating Environment: 50-120F Indoor Non-condesnign
- Physical Faceplate Dimensions: Refer to wiring diagram for more information.
- Mouthing: Refer to wiring diagram for more information
- Wiring: #22 AWG Minimum, #18 AWG Minimum for Power
